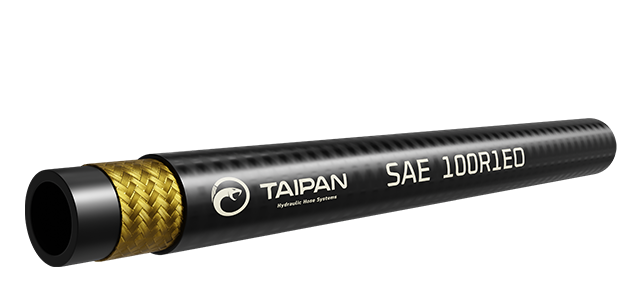

SAE100R1 Engine Oil Hose

ONE-WIRE ENGINE OIL HOSE

This single-wire, braided, non-skive hydraulic hose is designed for high-pressure applications. Its outer cover enhances abrasion resistance and meets or exceeds SAE J517 100R1 and EN853 standards.



Technical Details



APPLICATION

Inner Tube: Nitrile rubber (NBR II)

Reinforcement: One braid of high-tensile steel wire

Outer Cover: Oil, weather, and abrasion-resistant synthetic rubber, black, MSHA compliant



CONSTRUCTION

Inner Tube: Synthetic rubber (NBR I)

Reinforcement: One braid of high-tensile steel wire

Outer Cover: Oil, weather, and abrasion-resistant synthetic rubber, black, MSHA-compliant smooth cover - ¼” to 1” | Wrapped Cover - 1 ¼ to 2”



SPECIFICATIONS

Standards: Meets or exceeds SAE J517 100R1 and EN853

Approvals: MSHA, LR, KR, ABS

Temperature Range: -40°C - 121°C

Hose Tails: K series, D series with D1 Shells

See the full approvals sheet here

Part No.

Size (in)

ID (mm)

OD (mm)

Working PSI

Min. Burst Pressure (PSI)

Min. Bend Radius (mm)

Reel Length (m)

Weight (kg/m)

100R1EO-08

1/2

12.7

20.3

2320

9280

180

100

0.39
