SAE100R2 High Temperature Hose

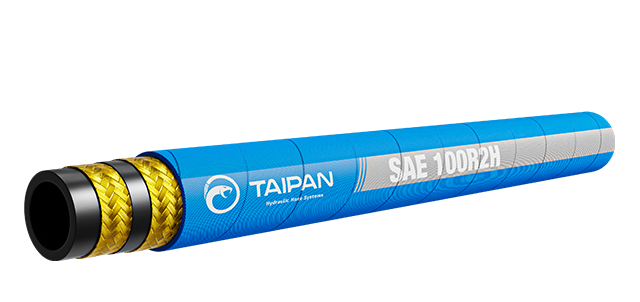

HIGH TEMPERATURE TWO-WIRE HOSE

This double-wire, braided, non-skive hydraulic hose is designed for high-temperature, high-pressure applications. Its wrapped cover enhances abrasion resistance and meets or exceeds SAE J517 100R2, EN853 and 2SN standards.



Technical Details



APPLICATION

High-temperature, high-pressure hydraulic applications. Suitable for the passage of mineral and vegetable oils, water-based solutions, water, air, and inert gases.

Air Applications: For air and inert gas applications, the cover should be pinpricked.



CONSTRUCTION

Inner Tube: Synthetic rubber

Reinforcement: Two braids of high-tensile steel wire separated by a synthetic rubber layer

Outer Cover: Oil, weather, and abrasion-resistant synthetic rubber, blue, MSHA compliant



SPECIFICATIONS

Standards: Meets or exceeds SAE J517 100R2, EN853 and 2SN

Approvals: MSHA

Temperature Range: -40°C - 150°C. For air, no higher than 121°C

Hose Tails: K series

See the full approvals sheet here

Part No.

Size (in)

ID (mm)

OD (mm)

Working PSI

Min. Burst Pressure (PSI)

Min. Bend Radius (mm)

Reel Length (m)

Weight (kg/m)

Looking for smaller dash sizes? Refer to SAE 100R16H

100R2H-20

1 1/4

31.8

47.8

1800

7200

420

20

2.16

100R2H-24

1 1/2

38.1

54.2

1300

5200

500

20

2.48

100R2H-32

2

50.8

67.0

1150

4600

630

20

3.08



Code Product Name Unit Stock Level
100R2H-20
TAIPAN BLUE HIGH TEMP 2 WIRE HOSE 1 1/4 1800PSI
Stock Code:
100R2H-20
Stock Level:
Medium
Sales UOM:
M
M
Medium
100R2H-24
TAIPAN BLUE HIGH TEMP 2 WIRE HOSE 1 1/2 1300PSI
Stock Code:
100R2H-24
Stock Level:
Medium
Sales UOM:
M
M
Medium
100R2H-32
TAIPAN BLUE HIGH TEMP 2 WIRE HOSE 2 1150PSI
Stock Code:
100R2H-32
Stock Level:
Medium
Sales UOM:
M
M
Medium
