SAE100R16 Compact High Temperature Hose

COMPACT TWO-WIRE HIGH-TEMPERATURE HOSE

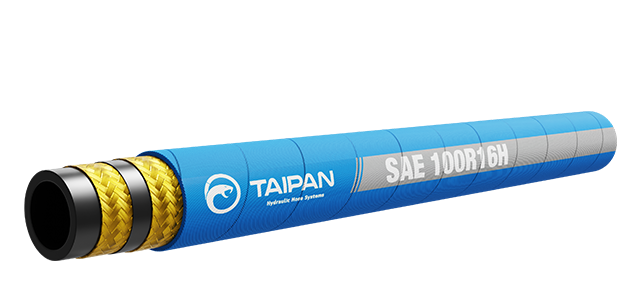

This double-wire, non-skive, braided hydraulic hose is designed for high-temperature applications requiring a tighter bend radius. It has enhanced abrasion resistance and meets or exceeds SAE J517 100R16 standards.

Technical Details



APPLICATION

High-temperature applications requiring a tighter bend radius. Suitable for the passage of mineral and vegetable oils, water-based solutions, water, air and inert gases.

Air Applications: For air and inert gas applications, the cover should be pinpricked.



CONSTRUCTION

Inner Tube: Synthetic rubber

Reinforcement: Two braids of high-tensile steel wire

Outer Cover: Oil, weather, and abrasion-resistant synthetic rubber, blue, MSHA compliant



SPECIFICATIONS

Standards: Meets or exceeds SAE J517 100R16, EN857 and 2SC

Approvals: MSHA, DNV

Temperature Range: -40°C - 150°C. For air, no higher than 121°C

Hose Tails: K series

See the full approvals sheet here





Part Number

Size (in)

ID (mm)

OD (mm)

Working PSI

Min. Burst Pressure (PSI)

Min. Bend Radius (mm)

Reel Length (m)

Weight (kg/m)

100R16H-04

1/4

6.4

13.2

5800

23200

50

RL*

0.30

100R16H-06

3/8

9.5

16.7

4800

19200

65

RL*

0.40

100R16H-08

1/2

12.7

20.2

4000

16000

90

RL*

0.50

100R16H-10

5/8

15.9

24.0

3600

14400

100

RL*

0.65

100R16H-12

3/4

19.0

27.9

3100

12000

120

RL*

0.85

100R16H-16

1

25.4

35.1

2400

9600

150

RL*

1.15
