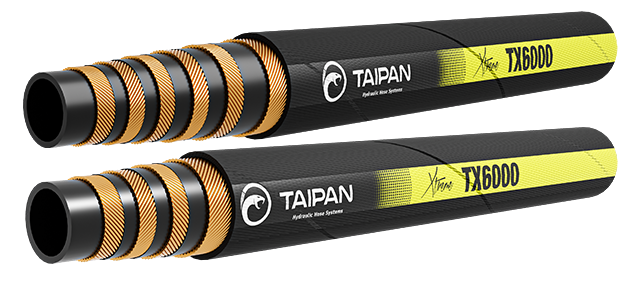

TX6000 Extreme Condition Hose

FOUR TO SIX WIRE COMPACT EXTREME CONDITION HOSE

This highly flexible, multispiral, hydraulic hose is designed for extreme conditions. Featuring an ultra-durable cover that exceeds the industry standard tenfold, 2000-hour ozone resistance, and a bend-radius that outperforms most, this hose is guaranteed to endure even the harshest industrial, environmental and climatic conditions in Australia.

Performance tested up to 500,000 cycles @7300psi & 120% over its working pressure.

Technical Details



APPLICATION

Extremely high-pressure applications that require a higher degree of flexibility compared to conventional spiral hose. Suitable for the passage of mineral and vegetable oils, water-based solutions, water, air and inert gases.



CONSTRUCTION

Inner Tube: Synthetic rubber

Reinforcement: Four* or six** plies of spirally-wrapped, high-tensile wire separated by synthetic rubber layers

Outer Cover: Oil, weather, and abrasion-resistant synthetic rubber, black, MSHA compliant, 2000hr Ozone resistance

*Four plies: -06 to -16 | **Six plies: -20 to -32



SPECIFICATIONS

Standards: Meets or exceeds SAE J517 100R15 and ISO 18752-CC

Approvals: MSHA, ISO 6805

Temperature Range: -40°C - 121°C

Hose Tails: L series (-06 and -08), N series (-10 to -32)

See the full approvals sheet here

Part Number

Size (in)

ID (mm)

OD (mm)

Working PSI

Min. Burst Pressure (PSI)

Min. Bend Radius (mm)

Reel Length (m)

Weight (kg/m)

TX6000-06

3/8

9.9

20.2

6090

24360

65

100

0.67

TX6000-08

1/2

13

22.9

6090

24360

90

100

0.78

TX6000-10

5/8

16.4

26.5

6090

24360

100

100

1.05

TX6000-12

3/4

19.5

30.5

6090

24360

120

100

1.36

TX6000-16

1

25.9

37.5

6090

24360

150

100

1.95

TX6000-20

1 1/4

32.5

47.3

6090

24360

400

40

3.77



Code Product Name Unit Stock Level
TX6000-06
TAIPAN XTREME 6090PSI MULTISPIRAL HOSE ISO18752 3/8
Stock Code:
TX6000-06
Stock Level:
Medium
Sales UOM:
M
M
Medium
TX6000-08
TAIPAN XTREME 6090PSI MULTISPIRAL HOSE ISO18752 1/2
Stock Code:
TX6000-08
Stock Level:
Low - Please contact your nearest branch
Sales UOM:
M
M
Low - Please contact your nearest branch
TX6000-10
TAIPAN XTREME 6090PSI MULTISPIRAL HOSE ISO18752 5/8
Stock Code:
TX6000-10
Stock Level:
Medium
Sales UOM:
M
M
Medium
TX6000-12
TAIPAN XTREME 6090PSI MULTISPIRAL HOSE ISO18752 3/4
Stock Code:
TX6000-12
Stock Level:
High
Sales UOM:
M
M
High
TX6000-16
TAIPAN XTREME 6090PSI MULTISPIRAL HOSE ISO18752 1
Stock Code:
TX6000-16
Stock Level:
Medium
Sales UOM:
M
M
Medium
TX6000-20
TAIPAN XTREME 6090PSI MULTISPIRAL HOSE ISO18752 4 WIRE 1 1/4
Stock Code:
TX6000-20
Stock Level:
Medium
Sales UOM:
M
M
Medium
