SAE100R14 Convoluted PTFE Hose

PTFE SMOOTH-BORE STAINLESS STEEL HOSE

This braided hydraulic hose is designed for applications where excellent chemical resistance, low coefficient friction, and non-contamination properties are required.

Technical Details



APPLICATION

Generally used in automotive, chemical, pharmaceutical, food processing, plastic and rubber moulding machines. For some applications, the tube can be made conductive to dissipate electrostatic charges



CONSTRUCTION

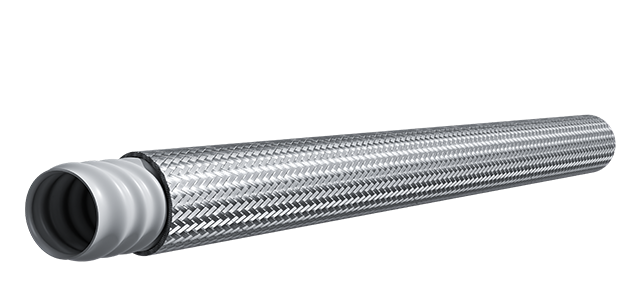

Inner Tube: Helically-convoluted sintered polytetrafluoroethylene (PTFE)

Reinforcement: One braid of 304-grade stainless steel wire



SPECIFICATIONS

Temperature Range: -54°C - 260°C

Hose Tails: C series

See the full approvals sheet here

Part No.

Size (in)

ID (mm)

OD (mm)

Working PSI

Min. Burst Pressure (PSI)

Min. Bend Radius (mm)

Reel Length (m)

Weight (kg/m)

100R14-08C

1/2

12.7

19.8

1960

7840

20

100

0.27



Code Product Name Unit Stock Level
100R14-08C
S/S COVER CONVOLUTED PTFE TRUE BORE HOSE 1/2 1960PSI
Stock Code:
100R14-08C
Stock Level:
Medium
Sales UOM:
M
M
Medium
