SAE100R12 Standard Hose

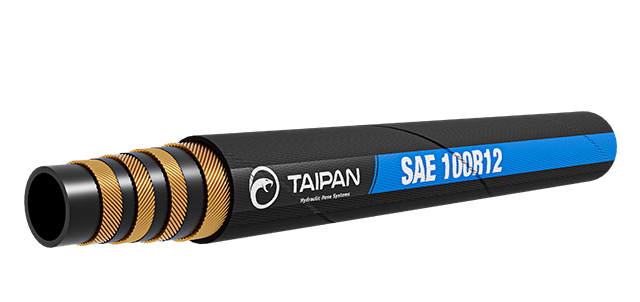

FOUR-WIRE COMPACT MULTISPIRAL HOSE

This four-wire spiral, non-skive hydraulic hose is designed for very high-pressure applications and offers a higher degree of flexibility compared to conventional spiral hose. Its flame-resistant cover enhances heat and abrasion resistance and meets or exceeds SAE J517 100R12 standards.

Technical Details



APPLICATION

High-pressure applications where a high degree of flexibility is required. Suitable for the passage of mineral and vegetable oils, water-based solutions, water, air and inert gases.



CONSTRUCTION

Inner Tube: Synthetic rubber

Reinforcement: Four spirals of high-tensile steel separated by synthetic rubber layers

Outer Cover: Oil, weather, and abrasion-resistant synthetic rubber, black, MSHA compliant



SPECIFICATIONS

Standards: Meets or exceeds SAE J517 100R12 and EN856

Approvals: DNV, MSHA, ABS

Temperature Range: -40°C - 121°C

Hose Tails: L series

See the full approvals sheet here

Part No.

Size (in)

ID (mm)

OD (mm)

Working PSI

Min. Burst Pressure (PSI)

Min. Bend Radius (mm)

Reel Length (m)

Weight (kg/m)

100R12-24

1 1/2

38.7

53.3

4200

16800

560

45

3.26

100R12-32

2

51.1

68.0

3625

14500

700

60

4.50



Code Product Name Unit Stock Level
100R12-24
TAIPAN 4 WIRE MULTISPIRAL HOSE 1 1/2 4200PSI
Stock Code:
100R12-24
Stock Level:
Medium
Sales UOM:
M
M
Medium
100R12-32
TAIPAN 4 WIRE MULTISPIRAL HOSE 2 3625PSI
Stock Code:
100R12-32
Stock Level:
Medium
Sales UOM:
M
M
Medium
