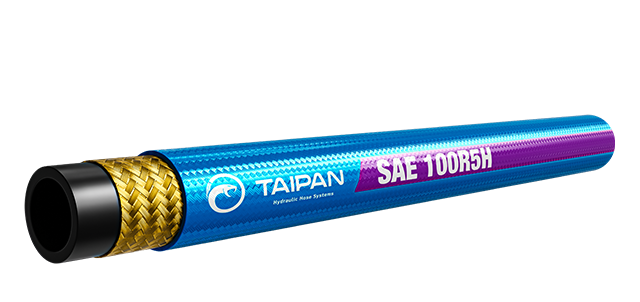

SAE100R5 High Temperature Truck Hose

HIGH TEMPERATURE TRUCKER/RAG HOSE

This braided, non-skive hydraulic hose is designed for high-temperature, medium-pressure impulse applications. Meets or exceeds SAE J517 100R5 standards.



Technical Details



APPLICATION

High-temperature, medium-pressure hydraulic petroleum-based oil lines. Suitable for the passage of mineral and vegetable oils, water-based solutions, water, air and inert gases. Also compatible with diesel and unleaded fuels.



CONSTRUCTION

Inner Tube: Synthetic rubber

Reinforcement: One textile braid, one high-tensile steel wire braid

Outer Cover: Oil-resistant polyester braid, blue



SPECIFICATIONS

Standards: Meets or exceeds SAE J517 100R5

Approvals: DOT

Temperature Range: -40°C - 150°C. For air, no higher than 121°C

Hose Tails: DF series, K series, F series

See the full approvals sheet here

Part Number

Size (in)

ID (mm)

OD (mm)

Working PSI

Min. Burst Pressure (PSI)

Min. Bend Radius (mm)

Reel Length (m)

Weight (kg/m)

100R5H-04

3/16

4.8

13.2

3000

12000

76

RL*

0.24

100R5H-05

1/4

6.4

14.5

3000

12000

85

RL*

0.26

100R5H-06

5/16

7.9

17.1

2250

9000

100

RL*

0.32

100R5H-08

13/32

10.3

19.4

2000

8000

115

RL*

0.36

100R5H-10

1/2

12.7

23.4

1750

7000

140

RL*

0.51

100R5H-12

5/8

15.9

27.4

1500

6000

165

RL*

0.63

100R5H-16

7/8

22.2

31.3

800

3200

185

RL*

0.63

100R5H-20

1 1/8

28.6

38.1

625

2500

230

RL*

0.75

100R5H-24

1 3/8

34.9

44.4

500

2000

265

RL*

0.82

100R5H-32

1 13/16

46.0

56.2

350

1400

335

RL*

1.14

*RL = Random Length



Code Product Name Unit Stock Level
100R5H-04
TAIPAN BLUE HIGH TEMP 1 WIRE TRUCK HOSE 3/16 3000PSI
Stock Code:
100R5H-04
Stock Level:
Medium
Sales UOM:
M
M
Medium
100R5H-05
TAIPAN BLUE HIGH TEMP 1 WIRE TRUCK HOSE 1/4 3000PSI
Stock Code:
100R5H-05
Stock Level:
Medium
Sales UOM:
M
M
Medium
100R5H-06
TAIPAN BLUE HIGH TEMP 1 WIRE TRUCK HOSE 5/16 2250PSI
Stock Code:
100R5H-06
Stock Level:
Medium
Sales UOM:
M
M
Medium
100R5H-08
TAIPAN BLUE HIGH TEMP 1 WIRE TRUCK HOSE 13/32 2000PSI
Stock Code:
100R5H-08
Stock Level:
Medium
Sales UOM:
M
M
Medium
100R5H-10
TAIPAN BLUE HIGH TEMP 1 WIRE TRUCK HOSE 1/2 1750PSI
Stock Code:
100R5H-10
Stock Level:
High
Sales UOM:
M
M
High
100R5H-12
TAIPAN BLUE HIGH TEMP 1 WIRE TRUCK HOSE 5/8 1500PSI
Stock Code:
100R5H-12
Stock Level:
Medium
Sales UOM:
M
M
Medium
100R5H-16
TAIPAN BLUE HIGH TEMP 1 WIRE TRUCK HOSE 7/8 800PSI
Stock Code:
100R5H-16
Stock Level:
Medium
Sales UOM:
M
M
Medium
100R5H-20
TAIPAN BLUE HIGH TEMP 1 WIRE TRUCK HOSE 1 1/8 625PSI
Stock Code:
100R5H-20
Stock Level:
Medium
Sales UOM:
M
M
Medium
100R5H-24
TAIPAN BLUE HIGH TEMP 1 WIRE TRUCK HOSE 1 3/8 500PSI
Stock Code:
100R5H-24
Stock Level:
Medium
Sales UOM:
M
M
Medium
100R5H-32
TAIPAN BLUE HIGH TEMP 1 WIRE TRUCK HOSE 1 13/16 350PSI
Stock Code:
100R5H-32
Stock Level:
Medium
Sales UOM:
M
M
Medium
