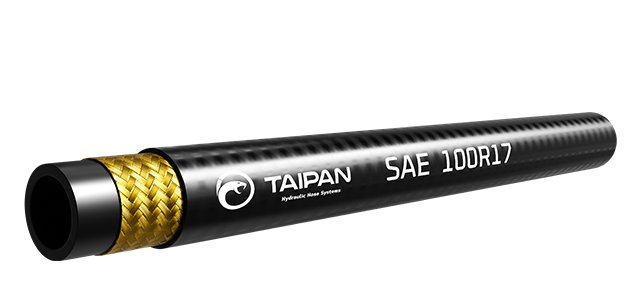

SAE100R17 Compact One-Wire Hose

COMPACT ONE-WIRE SMOOTH COVER HOSE

This compact, single-wire, braided hydraulic hose is designed for medium-pressure applications. Its smooth cover enhances abrasion resistance and meets or exceeds SAE J517 100R17 standards.

Technical Details



APPLICATION

Medium-pressure hydraulic applications, including mobile and industrial equipment. Suitable for hydraulic systems with petroleum and water-based fluids.

Air Applications: For air and inert gas applications, the cover should be pinpricked.



CONSTRUCTION

Inner Tube: TPC-ET

Reinforcement: One braid of high-tensile steel wire

Outer Cover: Oil, weather, and abrasion-resistant synthetic rubber, black, MSHA compliant



SPECIFICATIONS

Standards: Meets or exceeds SAE J517 100R17

Approvals: MSHA

Temperature Range: -20°C - 100°C

Hose Tails: K series, D series with D17 shells

See the full approvals sheet here

Part Number

Size (in)

ID (mm)

OD (mm)

Working PSI

Min. Burst Pressure (PSI)

Min. Bend Radius (mm)

Reel Length (m)

Weight (kg/m)

100R17-04

1/4

6.4

12.4

3045

12180

45

100

0.22

100R17-06

3/8

9.6

16.2

3045

12180

50

100

0.40



Code Product Name Unit Stock Level
100R17-04
TAIPAN COMPACT 1 WIRE HOSE 3045PSI
Stock Code:
100R17-04
Stock Level:
High
Sales UOM:
M
M
High
100R17-06
TAIPAN COMPACT 1 WIRE HOSE 3045PSI
Stock Code:
100R17-06
Stock Level:
High
Sales UOM:
M
M
High
