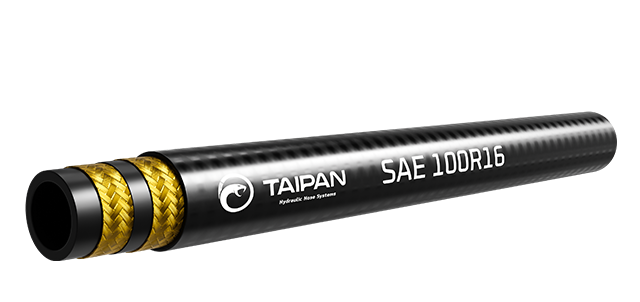

SAE100R16 Compact Two-Wire Hose

PREMIUM COMPACT TWO-WIRE HOSE

This double-wire, non-skive, braided hydraulic hose is designed for medium-pressure applications. Its smooth cover enhances abrasion resistance and meets or exceeds SAE J517 100R16 standards.

Also available in a Twin Line variant (SAE100R16TW).

Technical Details



APPLICATION

Ideal for hydraulic systems serviced with petroleum and water-based fluids.

Air Applications: For air and inert gas applications, the cover should be pinpricked.



CONSTRUCTION

Inner Tube: Synthetic rubber (NBR I)

Reinforcement: Two braids of high-tensile steel wire

Outer Cover: Oil, weather, and abrasion-resistant synthetic rubber, black, MSHA compliant



SPECIFICATIONS

Standards: Meets or exceeds SAE J517 100R16

Approvals: MSHA, LR

Temperature Range: -40°C - 100°C

Hose Tails: K series

See the full approvals sheet here

Part Number

Size (in)

ID (mm)

OD (mm)

Working PSI

Min. Burst Pressure (PSI)

Min. Bend Radius (mm)

Reel Length (m)

Weight (kg/m)

100R16-04

1/4

6.4

13.2

5000

20000

50

100

0.32

100R16-06

3/8

9.5

17.3

4000

16000

65

100

0.40

100R16-08

1/2

12.7

20.8

3500

14000

90

100

0.55



Code Product Name Unit Stock Level
100R16-04
TAIPAN COMPACT 2 WIRE HOSE 1/4 5000PSI
Stock Code:
100R16-04
Stock Level:
High
Sales UOM:
M
M
High
100R16-06
TAIPAN COMPACT 2 WIRE HOSE 3/8 4000PSI
Stock Code:
100R16-06
Stock Level:
High
Sales UOM:
M
M
High
100R16-08
TAIPAN COMPACT 2 WIRE HOSE 1/2 3500PSI
Stock Code:
100R16-08
Stock Level:
High
Sales UOM:
M
M
High
