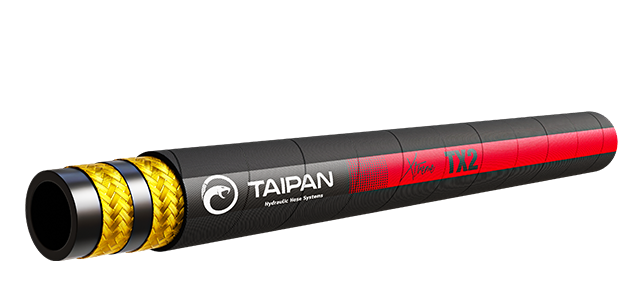

TX2 Extreme Condition Hose

COMPACT TWO-WIRE EXTREME CONDITION HOSE

This double-wire, non-skive, compact hydraulic hose is designed for extreme conditions. Featuring an ultra-durable cover that exceeds the industry standard tenfold, 2000-hour ozone resistance, and a bend-radius that outperforms most, this hose is guaranteed to endure even the harshest industrial, environmental and climatic conditions in Australia.

Performance tested to 200,000 cycles at 133% of its working pressure.

Technical Details



APPLICATION

Ideal for hydraulic systems serviced with petroleum and water-based fluids.

Air Applications: For air and inert gas applications, the cover should be pinpricked.



CONSTRUCTION

Inner Tube: Synthetic rubber

Reinforcement: Two braids of high-tensile steel wire

Outer Cover: Oil, weather, and abrasion-resistant synthetic rubber, black, MSHA compliant, 2000hr Ozone resistance



SPECIFICATIONS

Standards: Meets or exceeds SAE 100R16-S, SAE J517 100R16, DIN EN 857 2SC and SAE J517 100R19 (-04 to -12)

Approvals: MSHA, ISO 6805 (-08 to -16)

Temperature Range: -40°C - 100°C

Hose Tails: K series

See the full approvals sheet here

Part No.

Size (in)

ID (mm)

OD (mm)

Working PSI

Min. Burst Pressure (PSI)

Min. Bend Radius (mm)

Reel Length (m)

Weight (kg/m)

TX2-04

1/4

6.6

13.4

6525

26100

45

150

0.27

TX2-06

3/8

9.9

16.8

5585

22340

65

140

0.38

TX2-08

1/2

13.0

20.5

5075

20300

90

100

0.52

TX2-10

5/8

16.4

23.7

4205

16820

100

160

0.61

TX2-12

3/4

19.5

27.7

4060

16240

120

130

0.79

TX2-16

1

26.0

35.6

2900

11600

150

85

1.15
