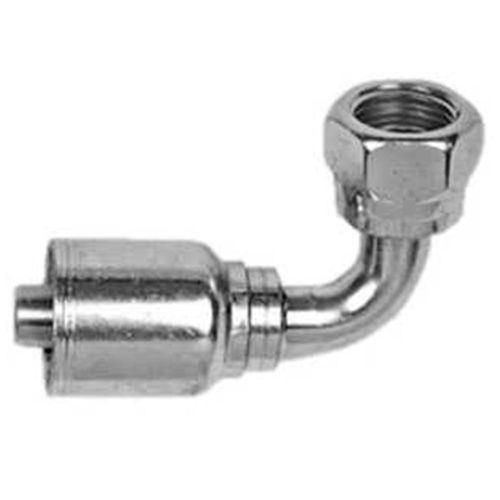

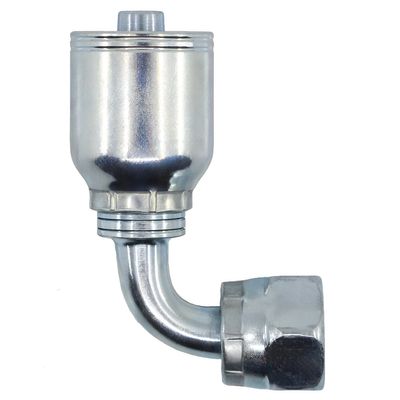

JIS (BSP) Female

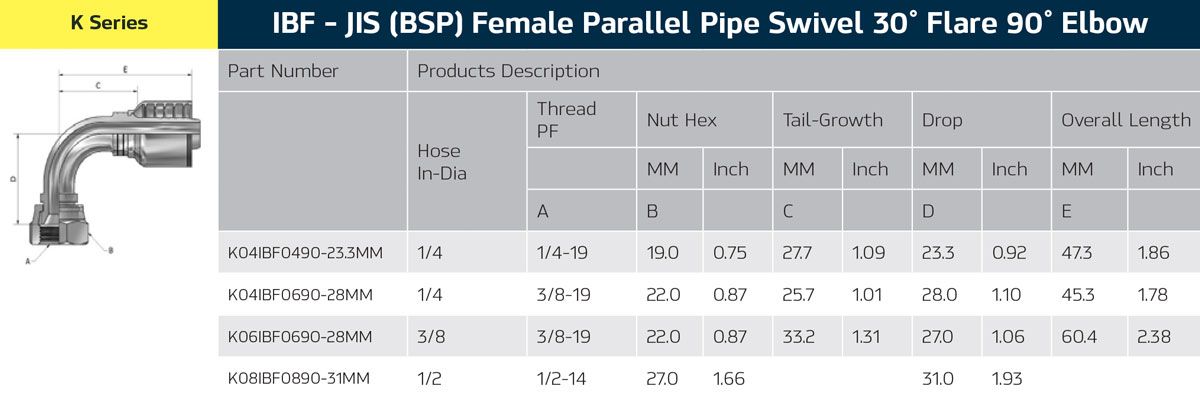

Technical Data

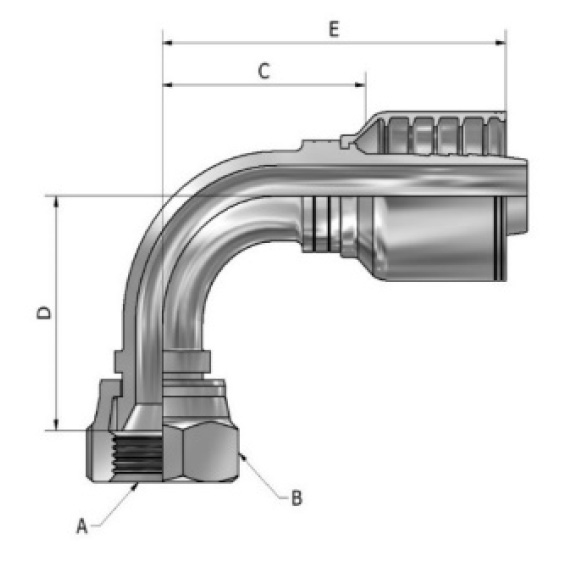

Part Number Hose ID Thread PF Nut Hex Cut-off Factor Drop Overall Length
mm Inch mm Inch mm Inch mm Inch
A B C D E
K04IBF0490-23.3MM 1/4 1/4-19 19.0 0.75 27.7 1.09 23.3 0.92 47.3 1.86
K04IBF0690-28MM 1/4 3/8-19 22.0 0.87 25.7 1.01 28.0 1.10 45.3 1.78
K06IBF0690-28MM 3/8 3/8-19 22.0 0.87 33.2 1.31 27.0 1.06 60.4 2.38
K08IBF0890-31MM 1/2 1/2-14 27.0 1.66 38.0 1.50 31.0 1.93 72.2 2.84







Code Product Name Unit Stock Level
K04IBF0490-23.3MM
HOSE 1/4 X JIS IMPERIAL FEMALE 1/4 90 DL-23.3MM
Stock Code:
K04IBF0490-23.3MM
Stock Level:
Medium
Sales UOM:
EACH
EACH
Medium
K04IBF0690-28MM
HOSE 1/4 X JIS IMPERIAL FEMALE 3/8 90 DL-28MM
Stock Code:
K04IBF0690-28MM
Stock Level:
Medium
Sales UOM:
EACH
EACH
Medium
K06IBF0690-28MM
HOSE 3/8 X JIS IMPERIAL FEMALE 3/8 90 DL-28MM
Stock Code:
K06IBF0690-28MM
Stock Level:
Medium
Sales UOM:
EACH
EACH
Medium
K08IBF0890-31MM
HOSE 1/2 X JIS IMPERIAL FEMALE 1/2 90 DL-31MM
Stock Code:
K08IBF0890-31MM
Stock Level:
Low - Please contact your nearest branch
Sales UOM:
EACH
EACH
Low - Please contact your nearest branch
