Metric Chinese Flat Face

Technical Data



Part Number

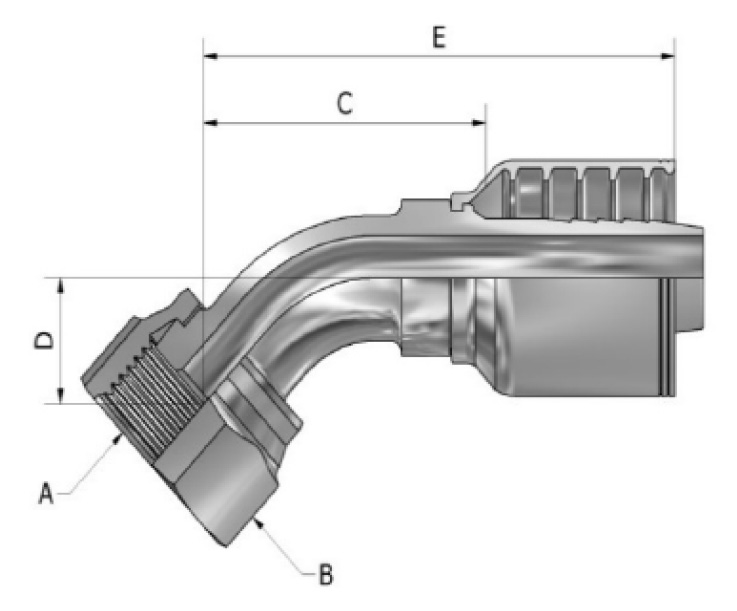

 Hose ID Thread METRIC Nut Hex Cut-off Factor Drop Overall Length
mm Inch mm Inch mm Inch mm Inch
A B C D E
K04MFF1445 1/4 M14 x 1.5 17.0 0.67 29.9 1.18 12.5 0.49 52.5 2.07
K06MFF1645 3/8 M16 x 1.5 22.2 0.87 43.7 1.72 22.9 0.90 72.8 2.87
K06MFF1845 3/8 M18 x 1.5 21.3 0.84 44.1 1.74 23.4 0.92 72.7 2.86
K08MFF2245 1/2 M22 x 1.5 27.0 1.06 39.0 1.54 17.0 0.67 73.2 2.88
K10MFF2745 5/8 M27 x 1.5 35.0 1.38 47.1 1.85 19.4 0.76 86.4 3.40
K12MFF3045 3/4 M30 x 1.5 36.0 1.42 52.8 2.08 21.1 0.83 92.2 3.63





Code Product Name Unit Stock Level
K04MFF1445
HOSE 1/4 X METRIC F FLAT FACE 14MM 45
Stock Code:
K04MFF1445
Stock Level:
Medium
Sales UOM:
EACH
EACH
Medium
K06MFF1645
HOSE 3/8 X METRIC F FLAT FACE 16MM 45
Stock Code:
K06MFF1645
Stock Level:
Medium
Sales UOM:
EACH
EACH
Medium
K06MFF1845
HOSE 3/8 X METRIC F FLAT FACE 18MM 45
Stock Code:
K06MFF1845
Stock Level:
Low - Please contact your nearest branch
Sales UOM:
EACH
EACH
Low - Please contact your nearest branch
K08MFF2245
HOSE 1/2 X METRIC F FLAT FACE 22MM 45
Stock Code:
K08MFF2245
Stock Level:
Low - Please contact your nearest branch
Sales UOM:
EACH
EACH
Low - Please contact your nearest branch
K10MFF2745
HOSE 5/8 X METRIC F FLAT FACE 27MM 45
Stock Code:
K10MFF2745
Stock Level:
Low - Please contact your nearest branch
Sales UOM:
EACH
EACH
Low - Please contact your nearest branch
K12MFF3045
HOSE 3/4 X METRIC F FLAT FACE 30MM 45
Stock Code:
K12MFF3045
Stock Level:
Low - Please contact your nearest branch
Sales UOM:
EACH
EACH
Low - Please contact your nearest branch
