SAE100R19 High Pressure Two Wire

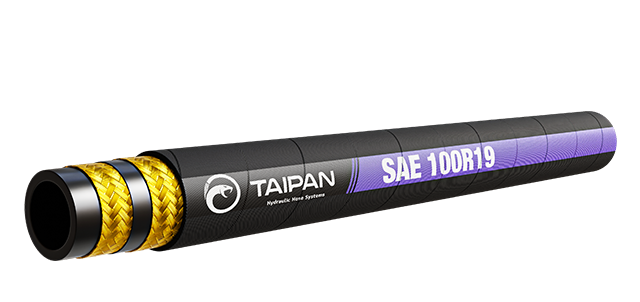

HIGH PRESSURE TWO-WIRE BRAIDED HOSE

This double-wire, braided, non-skive hydraulic hose is designed for high-pressure applications. Its wrapped cover enhances abrasion resistance and meets or exceeds SAE J517 100R19 standards.



Technical Details



APPLICATION

High-pressure hydraulic applications. Suitable for the passage of mineral and vegetable oils, water-based solutions and inert gases.

Air Applications: For air and inert gas applications, the cover should be pinpricked.



CONSTRUCTION

Inner Tube: Synthetic rubber

Reinforcement: Two braids of high-tensile steel wire separated by a synthetic rubber layer

Outer Cover: Oil, weather, and abrasion-resistant synthetic rubber, black, MSHA compliant



SPECIFICATIONS

Standards: Meets or exceeds SAE J517 100R19

Approvals: MSHA, DNV

Temperature Range: -40°C - 100°C (125°C discontinuous)

Hose Tails: K series

See the full approvals sheet here

Part No.

Size (in)

ID (mm)

OD (mm)

Working PSI

Min. Burst Pressure (PSI)

Min. Bend Radius (mm)

Reel Length (m)

Weight (kg/m)

100R19-10

5/8

15.9

23.8

4100

16400

100

60

0.65

100R19-12

3/4

19.0

27.8

4100

16400

120

60

0.80

100R19-16

1

25.4

37.0

4100

16400

150

40

1.25



Code Product Name Unit Stock Level
100R19-10
TAIPAN HIGH PRESSURE 2 WIRE HOSE 5/8 4100PSI
Stock Code:
100R19-10
Stock Level:
Medium
Sales UOM:
M
M
Medium
100R19-12
TAIPAN HIGH PRESSURE 2 WIRE HOSE 3/4 4100PSI
Stock Code:
100R19-12
Stock Level:
High
Sales UOM:
M
M
High
100R19-16
TAIPAN HIGH PRESSURE 2 WIRE HOSE 1 4100PSI
Stock Code:
100R19-16
Stock Level:
Medium
Sales UOM:
M
M
Medium
