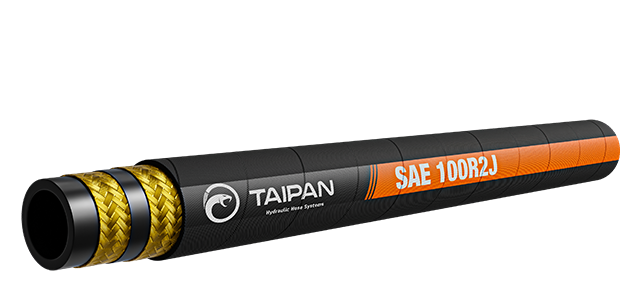

SAE100R2 Jacking Hose

HYDRAULIC JACK HOSE

This braided, non-skive hydraulic hose is designed specifically for hydraulic jack applications. Meets or exceeds IJ100 standards (10000PSI static pressure only).



Technical Details



APPLICATION

Hydraulic jack applications using petroleum and water-based fluids. Suitable for the passage of mineral and vegetable oils, water-based solutions, water, air and inert gases.



CONSTRUCTION

Inner Tube: Synthetic rubber

Reinforcement: Two braids of high-tensile steel wire separated by a synthetic rubber layer

Outer Cover: Oil, weather, and abrasion-resistant synthetic rubber, black, MSHA



SPECIFICATIONS

Standards: Meets or exceeds IJ100 (10000PSI static pressure only)

Temperature Range: -40°C - 100°C (intermittent to 125°C)

Hose Tails: K series

See the full approvals sheet here

Part No.

Size (in)

ID (mm)

OD (mm)

Working PSI

Min. Burst Pressure (PSI)

Min. Bend Radius (mm)

Reel Length (m)

Weight (kg/m)

100R2J-04

1/4*

6.4

13.3

10000

20000

50

RL***

0.34

100R2J-06

3/8**

9.5

17.3

10000

20000

65

RL***

0.42

*Bend restrictors: VBR-0150. Other sizes also available.
**Bend restrictors: VBR-0190. Other sizes also available.
***RL = Random Length.

Code Product Name Unit Stock Level
100R2J-04
TAIPAN JACKING HOSE 1/4 10000PSI (STATIC) IJ100
Stock Code:
100R2J-04
Stock Level:
Medium
Sales UOM:
M
M
Medium
100R2J-06
TAIPAN JACKING HOSE 3/8 10000PSI (STATIC) IJ100
Stock Code:
100R2J-06
Stock Level:
Medium
Sales UOM:
M
M
Medium
