SAE100R16 Compact Twin-Line Hose

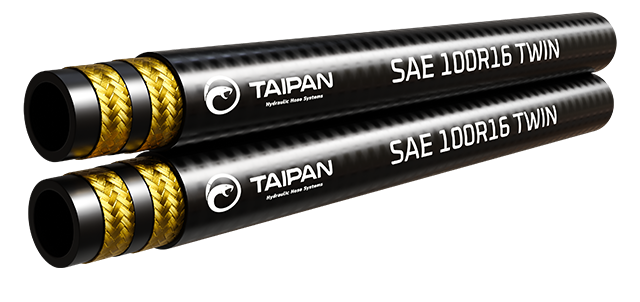

COMPACT TWO-WIRE TWIN-LINE HOSE

This double-wire, non-skive, braided hydraulic hose is designed for medium-pressure applications. Its smooth cover enhances abrasion resistance and meets or exceeds SAE J517 100R16 standards.

Also available in a single line variant (SAE100R16).

Technical Details



APPLICATION

Ideal for hydraulic systems serviced with petroleum and water-based fluids.

Air Applications: For air and inert gas applications, the cover should be pinpricked.



CONSTRUCTION

Inner Tube: Synthetic rubber

Reinforcement: Two braids of high-tensile steel wire

Outer Cover: Oil, weather, and abrasion-resistant synthetic rubber, black, MSHA compliant



SPECIFICATIONS

Standards: Meets or exceeds SAE J517 100R16

Approvals: MSHA, LR

Temperature Range: -40°C - 120°C (135°C Discontinuous)

Hose Tails: K series

See the full approvals sheet here

Part No.

Size (in)

ID (mm)

OD (mm)

Working PSI

Min. Burst Pressure (PSI)

Min. Bend Radius (mm)

Reel Length (m)

Weight (kg/m)

100R16TW-06

3/8

10.0

17.1

5075

20300

70

100

0.836

100R16TW-08

1/2

12.7

20.5

4495

17980

80

100

1.042



Code Product Name Unit Stock Level
100R16TW-06
COMPACT 2 WIRE TWIN LINE HOSE 3/8 5075PSI
Stock Code:
100R16TW-06
Stock Level:
Medium
Sales UOM:
M
M
Medium
100R16TW-08
COMPACT 2 WIRE TWIN LINE HOSE 1/2 4495PSI
Stock Code:
100R16TW-08
Stock Level:
Medium
Sales UOM:
M
M
Medium
