Komatsu Female



Technical Data

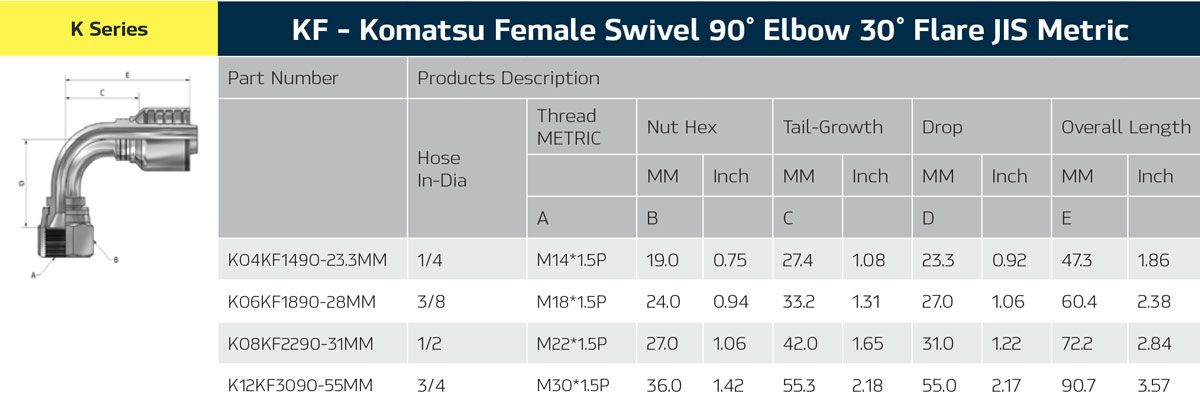

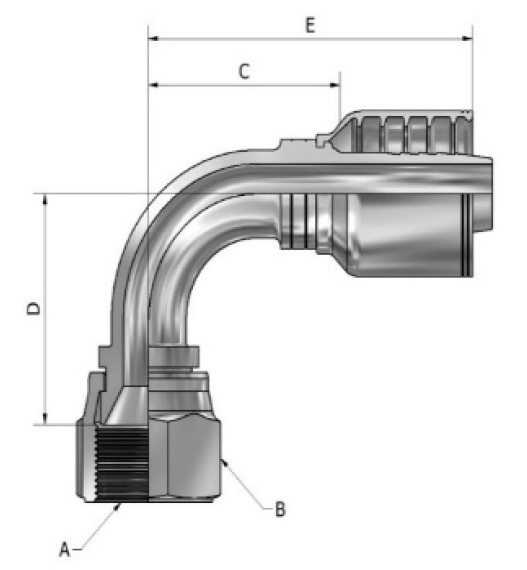

Part Number Hose ID Thread METRIC Nut Hex Cut-off Factor Drop Overall Length
mm Inch mm Inch mm Inch mm Inch
A B C D E
K04KF1490-23.3MM 1/4 M14 x 1.5 19.0 0.75 27.4 1.08 23.3 0.92 47.3 1.86
K06KF1890-28MM 3/8 M18 x 1.5 24.0 0.94 33.2 1.31 27.0 1.06 60.4 2.38
K08KF2290-31MM 1/2 M22 x 1.5 27.0 1.06 42.0 1.65 31.0 1.22 72.2 2.84
K12KF3090-55MM 3/4 M30 x 1.5 36.0 1.41 55.3 2.18 55.0 2.17 90.7 3.57



Code Product Name Unit Stock Level
K04KF1490-23.3MM
HOSE 1/4 X JIS METRIC FEMALE 14MM 90 DL-23.3MM
Stock Code:
K04KF1490-23.3MM
Stock Level:
Medium
Sales UOM:
EACH
EACH
Medium
K06KF1890-28MM
HOSE 3/8 X JIS METRIC FEMALE 18MM 90 DL-28MM
Stock Code:
K06KF1890-28MM
Stock Level:
Low - Please contact your nearest branch
Sales UOM:
EACH
EACH
Low - Please contact your nearest branch
K08KF2290-31MM
HOSE 1/2 X JIS METRIC FEMALE 22MM 90 DL-31MM
Stock Code:
K08KF2290-31MM
Stock Level:
Low - Please contact your nearest branch
Sales UOM:
EACH
EACH
Low - Please contact your nearest branch
K12KF3090-55MM
HOSE 3/4 X JIS METRIC FEMALE 30MM 90 DL-55MM
Stock Code:
K12KF3090-55MM
Stock Level:
Medium
Sales UOM:
EACH
EACH
Medium
