SAE100R7 Twin-Line Thermoplastic Hose

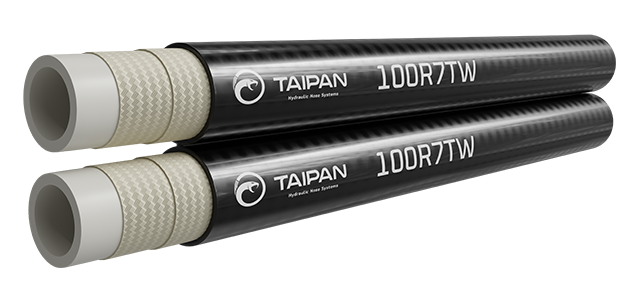

TWIN-LINE THERMOPLASTIC HOSE

This twin-line thermoplastic hydraulic hose is designed for medium-pressure applications. Its polyurethane cover enhances abrasion resistance and meets or exceeds SAE J517 100R7 and EN855 standards.

Also available in single-line and non-conductive options.



Technical Details



APPLICATION

Medium-pressure systems that use petroleum, synthetic or water-based hydraulic fluids. Suitable for general fluid power transmissions, such as earthmoving and agricultural machinery, forklifts, and trucks. Also suitable for many industrial gases.



CONSTRUCTION

Inner Tube: Polyester elastomer

Reinforcement: One or two braids of synthetic fibre

Outer Cover: Polyurethane, pinpricked, black



SPECIFICATIONS

Standards: Meets or exceeds SAE J517 100R7 and EN855

Vacuum Rating: 0.93bar, 700mm Hg (-13.5PSI: 27.5 inch Hg)

Temperature Range: -40°C - 100°C. Not to exceed 70°C for air and water-based fluids

Hose Tails: J Series

See the full approvals sheet here

Part No.

Size (in)

ID (mm)

OD (mm)

Working PSI

Min. Burst Pressure (PSI)

Min. Bend Radius (mm)

Reel Length (m)

Weight (kg/m)

100R7TW-04

1/4

6.5

12.2

3000

12000

35

100

0.20

100R7TW-06

3/8

9.7

16.0

2300

9200

55

100

0.29

100R7TW-08

1/2

13.0

20.3

2000

8000

75

100

0.44



Code Product Name Unit Stock Level
100R7TW-04
TAIPAN THERMOPLASTIC TWIN LINE HOSE 1/4 3000PSI
Stock Code:
100R7TW-04
Stock Level:
Medium
Sales UOM:
M
M
Medium
100R7TW-06
TAIPAN THERMOPLASTIC TWIN LINE HOSE 3/8 2300PSI
Stock Code:
100R7TW-06
Stock Level:
Medium
Sales UOM:
M
M
Medium
100R7TW-08
TAIPAN THERMOPLASTIC TWIN LINE HOSE 1/2 2000PSI
Stock Code:
100R7TW-08
Stock Level:
Medium
Sales UOM:
M
M
Medium
