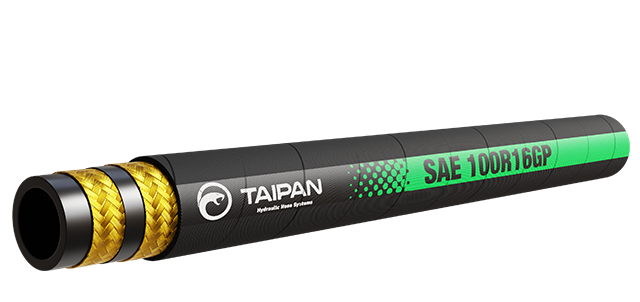

SAE100R16 Compact General Purpose Hose

GENERAL PURPOSE COMPACT TWO-WIRE HOSE

This double-wire, non-skive, braided hydraulic hose is designed for medium to high-pressure applications. Its outer cover enhances abrasion resistance and meets or exceeds SAE J517 100R16 and EN857 2SC standards.

Technical Details



APPLICATION

Medium to high-pressure hydraulic lines. Suitable for petroleum-based hydraulic fluids, synthetic esters, biodegradable hydraulic fluids, water-glycol-based fluids and air.

Air Applications: For air and inert gas applications, the cover should be pinpricked.



CONSTRUCTION

Inner Tube: Synthetic rubber

Reinforcement: Two braids of high-tensile, flexible steel wire separated by a synthetic rubber layer

Outer Cover: Oil, weather, and abrasion-resistant synthetic rubber, black, MSHA compliant



SPECIFICATIONS

Standards: Meets or exceeds SAE J517 100R16, EN857 2SC

Approvals: MSHA

Temperature Range: -40°C - 100°C

Hose Tails: K series

See the full approvals sheet here

Part No.

Size (in)

ID (mm)

OD (mm)

Working PSI

Min. Burst Pressure (PSI)

Min. Bend Radius (mm)

Reel Length (m)

Weight (kg/m)

100R16GP-04

1/4

6.4

13.2

5800

23200

50

100

0.30

100R16GP-06

3/8

9.5

17.0

4785

19140

65

100

0.42

100R16GP-08

1/2

12.7

20.5

4000

16000

90

100

0.54

100R16GP-10

5/8

15.9

24.0

3625

14500

100

100

0.68

100R16GP-12

3/4

18.9

28.0

3120

12480

120

70

0.80

100R16GP-16

1

25.4

35.3

2400

9600

150

70

1.15



Code Product Name Unit Stock Level
100R16GP-04
TAIPAN GENERAL PURPOSE COMPACT 2 WIRE HOSE 1/4 5800PSI
Stock Code:
100R16GP-04
Stock Level:
High
Sales UOM:
M
M
High
100R16GP-06
TAIPAN GENERAL PURPOSE COMPACT 2 WIRE HOSE 3/8 4785PSI
Stock Code:
100R16GP-06
Stock Level:
High
Sales UOM:
M
M
High
100R16GP-08
TAIPAN GENERAL PURPOSE COMPACT 2 WIRE HOSE 1/2 4000PSI
Stock Code:
100R16GP-08
Stock Level:
High
Sales UOM:
M
M
High
100R16GP-10
TAIPAN GENERAL PURPOSE COMPACT 2 WIRE HOSE 5/8 3625PSI
Stock Code:
100R16GP-10
Stock Level:
Medium
Sales UOM:
M
M
Medium
100R16GP-12
TAIPAN GENERAL PURPOSE COMPACT 2 WIRE HOSE 3/4 3120PSI
Stock Code:
100R16GP-12
Stock Level:
Medium
Sales UOM:
M
M
Medium
100R16GP-16
TAIPAN GENERAL PURPOSE COMPACT 2 WIRE HOSE 1 2400PSI
Stock Code:
100R16GP-16
Stock Level:
Medium
Sales UOM:
M
M
Medium
