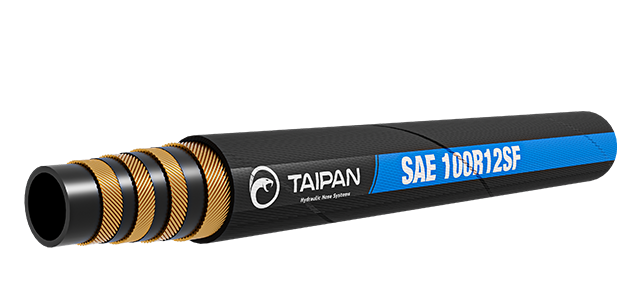

SAE100R12 Superflex Hose

PREMIUM REDUCED BEND RADIUS HOSE

This four-wire spiral, non-skive hydraulic hose is designed for very high-pressure applications and offers a higher degree of flexibility compared to conventional spiral hose. Its flame-resistant cover enhances heat and abrasion resistance, offers 720 hours of ozone resistance, and meets or exceeds SAE J517 100R12 and EN 856 standards. Tested over 1,000,000 impulse cycles at 133% of working pressure.

Technical Details



APPLICATION

Very high-pressure applications where a high degree of flexibility is required. Suitable for the passage of mineral and vegetable oils, water-based solutions, water, air and inert gases.



CONSTRUCTION

Inner Tube: Synthetic rubber

Reinforcement: Four spirals of high-tensile

steel separated by synthetic rubber layers

Outer Cover: Oil, weather, and abrasion-resistant synthetic rubber, black, MSHA compliant



SPECIFICATIONS

Standards: Meets or exceeds SAE J517 100R12 and EN 856

Approvals: 3/4” & 1” - DNV, MSHA, BV | 1 1/4” & 1 1/2” - DNV, MSHA, MED, ABS

Temperature Range: -40°C - 121°C (intermittent to 125°C)

Hose Tails: L series

See the full approvals sheet here

Part No.

Size (in)

ID (mm)

OD (mm)

Working PSI

Min. Burst Pressure (PSI)

Min. Bend Radius (mm)

Reel Length (m)

Weight (kg/m)

100R12SF-12

3/4

19.0

30.0

4000

16000

120

60

1.10

100R12SF-16

1

25.4

37.0

4000

16000

150

60

1.40

100R12SF-20

1 1/4

31.8

44.6

4000

16000

210

60

2.50

100R12SF-24

1 1/2

38.1

51.6

4000

16000

290

45

3.10



Code Product Name Unit Stock Level
100R12SF-12
TAIPAN SUPERFLEX 4000PSI REDUCED BEND RADIUS MULTISPIRAL HOSE 3/4
Stock Code:
100R12SF-12
Stock Level:
High
Sales UOM:
M
M
High
100R12SF-16
TAIPAN SUPERFLEX 4000PSI REDUCED BEND RADIUS MULTISPIRAL HOSE 1
Stock Code:
100R12SF-16
Stock Level:
High
Sales UOM:
M
M
High
100R12SF-20
TAIPAN SUPERFLEX 4000PSI REDUCED BEND RADIUS MULTISPIRAL HOSE 1 1/4
Stock Code:
100R12SF-20
Stock Level:
High
Sales UOM:
M
M
High
100R12SF-24
TAIPAN SUPERFLEX 4000PSI REDUCED BEND RADIUS MULTISPIRAL HOSE 1 1/2
Stock Code:
100R12SF-24
Stock Level:
Medium
Sales UOM:
M
M
Medium
