SAE100R13 5000PSI High Pressure Hose

VERY HIGH PRESSURE MULTISPIRAL HOSE

This four-wire spiral, non-skive hydraulic hose is designed for very high-pressure applications. Its synthetic rubber cover enhances abrasion resistance and meets or exceeds SAE J517 100R13 and EN856 R13 standards.

Technical Details



APPLICATION

Very high-pressure applications with petroleum-based hydraulic fluids.

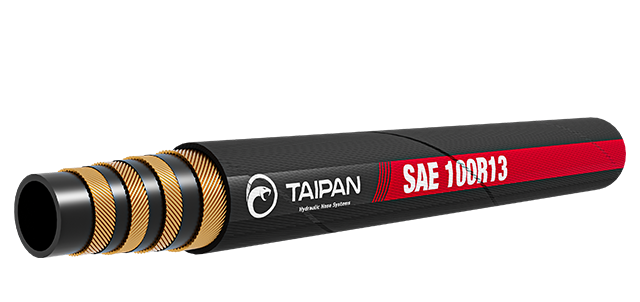

CONSTRUCTION

Inner Tube: Synthetic rubber (NBR II)

Reinforcement: Four plies of spirally-wrapped, high-tensile wire separated by synthetic rubber layers

Outer Cover: Oil, weather, and abrasion-resistant synthetic rubber, black, MSHA compliant



SPECIFICATIONS

Standards: Meets or exceeds SAE J517 100R13 and EN856 R13

Approvals: MSHA, LR, KR, ABS

Temperature Range: -40°C - 121°C

Hose Tails: N series

See the full approvals sheet here

Part No.

Size (in)

ID (mm)

OD (mm)

Working PSI

Min. Burst Pressure (PSI)

Min. Bend Radius (mm)

Reel Length (m)

Weight (kg/m)

100R13-12

3/4

19.0

31.2

5000

20000

250

20

1.50

100R13-16

1

25.4

38.5

5000

20000

300

20

2.20



Code Product Name Unit Stock Level
100R13-12
TAIPAN 5000PSI MULTISPIRAL HOSE 3/4
Stock Code:
100R13-12
Stock Level:
Medium
Sales UOM:
M
M
Medium
100R13-16
TAIPAN 5000PSI MULTISPIRAL HOSE 1
Stock Code:
100R13-16
Stock Level:
Medium
Sales UOM:
M
M
Medium
