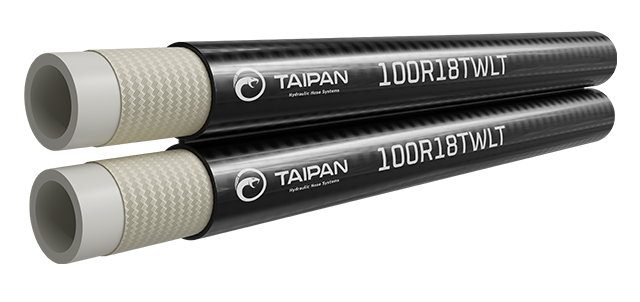

SAE100R18 Thermoplastic Twin Line Hose

LOW TEMPERATURE TWIN-LINE THERMOPLASTIC HOSE

This twin-line, thermoplastic hydraulic hose is designed for medium-pressure applications. Its optimum bonding characteristics and special polyester cover make it ideal for equipment operating in cold environments. Meets or exceeds SAE J517 100R18 and ISO 3949-R18 standards.



Technical Details



APPLICATION

Medium-pressure systems that use petroleum or synthetic-based hydraulic fluids. Suitable for all industrial and agricultural applications exposed to low temperatures or cyclic and quick temperature changes.



CONSTRUCTION

Inner Tube: Polyester elastomer

Reinforcement: One or two braids of synthetic fibre

Outer Cover: Special polyester, pinpricked, black



SPECIFICATIONS

Standards: Meets or exceeds SAE J517 100R18 and ISO 3949-R18

Temperature Range: -55°C - 100 °C. Limited to 70°C for air and water-based fluids

Hose Tails: J Series

See the full approvals sheet here

Part No.

Size (in)

ID (mm)

OD (mm)

Working PSI

Min. Burst Pressure (PSI)

Min. Bend Radius (mm)

Reel Length (m)

Weight (kg/m)

100R18TWLT-04

1/4

6.5

12.2

3000

12000

35

100

0.19



Code Product Name Unit Stock Level
100R18TWLT-04
TAIPAN LOW TEMP THERMOPLASTIC TWIN LINE HOSE 1/4 3000PSI
Stock Code:
100R18TWLT-04
Stock Level:
Medium
Sales UOM:
M
M
Medium
