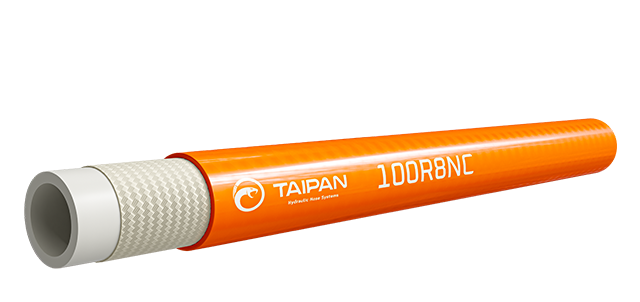

SAE100R8 Non-Conductive Thermoplastic Hose

NON-CONDUCTIVE THERMOPLASTIC HOSE

This thermoplastic hydraulic hose is designed for high-pressure applications requiring non-conductivity. Its polyurethane cover enhances abrasion resistance and meets or exceeds SAE J517 100R8, ISO 3949-R8 and EN855 standards.

Also available in twin-line and conductive options.



Technical Details



APPLICATION

High-pressure systems that use petroleum or synthetic-based hydraulic fluids in applications requiring electrical insulation or non-conductivity.

Air Applications: For air and inert gas applications, the cover should be pinpricked.



CONSTRUCTION

Inner Tube: Polyester elastomer

Reinforcement: One or two braids of aramid fibre

Outer Cover: Polyurethane, not pinpricked, orange



SPECIFICATIONS

Standards: Meets or exceeds SAE J517 100R8, ISO 3949-R8 and EN855. Also meets SAE J517, J343 and EN855 for non-conductivity, where maximum electrical leakage shall not exceed 50A when a 152mm sample is subject to 37.5 kV for 5 minutes, equivalent to 250kV/metre

Vacuum Rating: 0.93bar, 700mm Hg (-13.5PSI: 27.5 inch Hg)

Temperature Range: -40°C - 100°C. Not to exceed 70°C for air and water-based fluids

Hose Tails: J Series

See the full approvals sheet here

Part Number

Size (in)

ID (mm)

OD (mm)

Working PSI

Min. Burst Pressure (PSI)

Min. Bend Radius (mm)

Reel Length (m)

Weight (kg/m)

100R8NC-04

1/4

6.5

11.5

5000

20000

50

100

0.09

100R8NC-06

3/8

9.7

15.5

4000

16000

60

100

0.14

100R8NC-08

1/2

13.0

19.9

3500

14000

80

100

0.20



Code Product Name Unit Stock Level
100R8NC-04
TAIPAN ORANGE NON CONDUCTIVE THERMOPLASTIC HOSE 1/4 5000PSI
Stock Code:
100R8NC-04
Stock Level:
High
Sales UOM:
M
M
High
100R8NC-06
TAIPAN ORANGE NON CONDUCTIVE THERMOPLASTIC HOSE 3/8 4000PSI
Stock Code:
100R8NC-06
Stock Level:
Medium
Sales UOM:
M
M
Medium
100R8NC-08
TAIPAN ORANGE NON CONDUCTIVE THERMOPLASTIC HOSE 1/2 3500PSI
Stock Code:
100R8NC-08
Stock Level:
Medium
Sales UOM:
M
M
Medium
