SAE100R14 PTFE Hose

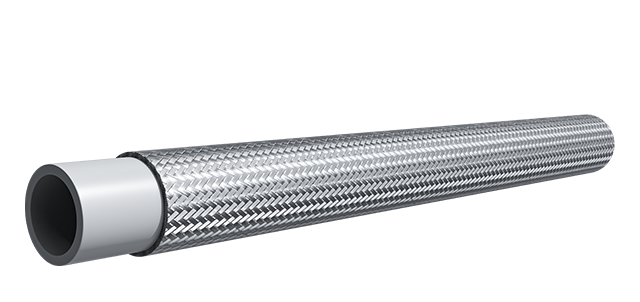

PTFE SMOOTH-BORE STAINLESS STEEL HOSE

This braided hydraulic hose is designed for applications where excellent chemical resistance, low coefficient friction, and non-contamination properties are required.

Technical Details



APPLICATION

Ideal for high-temperature steam lines, hot air supply lines, compressors, chemical, and brake fluid lines (non-petroleum).



CONSTRUCTION

Inner Tube: Polytetrafluoroethylene (PTFE)

Reinforcement: One braid of 304-grade stainless steel wire



SPECIFICATIONS

Temperature Range: -54°C - 260°C

Hose Tails: C series

See the full approvals sheet here

Part No.

Size (in)

ID (mm)

OD (mm)

Working PSI

Min. Burst Pressure (PSI)

Min. Bend Radius (mm)

Reel Length (m)

Weight (kg/m)

100R14-02

1/8

3.0

6.2

3260

13040

40

100

0.07

100R14-03

3/16

4.8

7.6

2750

11000

50

100

0.08

100R14-04

1/4

6.4

8.8

2610

10440

75

100

0.10

100R14-05

5/16

8.0

11.0

2540

10160

100

100

0.13

100R14-06

3/8

9.5

12.1

2390

9560

125

100

0.17

100R14-08

1/2

12.7

16.2

1740

6960

165

100

0.22

100R14-10

5/8

16.0

18.8

1270

5080

200

50

0.28

100R14-12

3/4

19.0

23.1

1010

4040

230

50

0.33

100R14-16

1

25.4

29.2

870

3480

300

20

0.45
