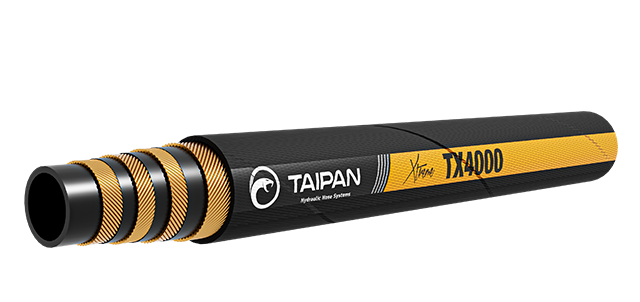

TX4000 Extreme Condition Hose

FOUR-WIRE COMPACT EXTREME CONDITION HOSE

This highly flexible, multispiral, compact hydraulic hose is designed for extreme conditions. Featuring an ultra-durable cover that exceeds the industry standard, excellent ozone resistance, and a bend-radius that outperforms most, this hose is guaranteed to endure even the harshest industrial, environmental and climatic conditions in Australia.

Performance tested to 500,000 cycles at 133% of its working pressure.



Technical Details



APPLICATION

High-pressure applications where a high degree of flexibility is required. Suitable for the passage of mineral and vegetable oils, water-based solutions, water, air and inert gases.



CONSTRUCTION

Inner Tube: Synthetic rubber

Reinforcement: Four spirals of high-tensile steel separated by synthetic rubber layers

Outer Cover: Oil, weather, and abrasion-resistant synthetic rubber, black, MSHA compliant, improved Ozone resistance



SPECIFICATIONS

Standards: Meets or exceeds SAE J517 100R12 and EN856 R12

Approvals: DNV, MSHA, ABS, MED

Temperature Range: -40°C - 121°C

Hose Tails: L series

See the full approvals sheet here

Part No.

Size (in)

ID (mm)

OD (mm)

Working PSI

Min. Burst Pressure (PSI)

Min. Bend Radius (mm)

Reel Length (m)

Weight (kg/m)

TX4000-06

3/8

9.5

19.7

4100

16400

65

60

0.60

TX4000-08

1/2

12.7

22.7

4100

16400

90

60

0.80

TX4000-12

3/4

19.0

30.0

4100

16400

120

60

1.10

TX4000-16

1

25.4

37.0

4100

16400

150

60

1.40



Code Product Name Unit Stock Level
TX4000-06
TAIPAN XTREME 4100PSI MULTISPIRAL HOSE 3/8
Stock Code:
TX4000-06
Stock Level:
High
Sales UOM:
M
M
High
TX4000-08
TAIPAN XTREME 4100PSI MULTISPIRAL HOSE 1/2
Stock Code:
TX4000-08
Stock Level:
High
Sales UOM:
M
M
High
TX4000-12
TAIPAN XTREME 4100PSI MULTISPIRAL HOSE 3/4
Stock Code:
TX4000-12
Stock Level:
Medium
Sales UOM:
M
M
Medium
