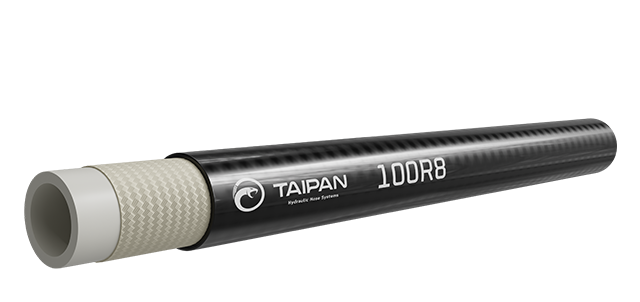

SAE100R8 Thermoplastic Hose

THERMOPLASTIC HOSE

This thermoplastic hydraulic hose is designed for high-pressure applications and offers very low expansion. Its polyurethane cover enhances abrasion resistance and meets or exceeds SAE J517 100R8, ISO 3949-R8 and EN855 standards.

Also available in twin-line and non-conductive options.



Technical Details



APPLICATION

High-pressure systems that use petroleum, synthetic or water-based hydraulic fluids. Suitable for general fluid power transmissions, such as earthmoving and agricultural machinery, forklifts, and trucks. Also suitable for many industrial gases.



CONSTRUCTION

Inner Tube: Polyester elastomer

Reinforcement: One or two braids of aramid fibre

Outer Cover: Polyurethane, pinpricked, black



SPECIFICATIONS

Standards: Meets or exceeds SAE J517 100R8, ISO 3949-R8 and EN855

Vacuum Rating: 0.93bar, 700mm Hg (-13.5PSI: 27.5 inch Hg)

Temperature Range: -40°C - 100°C. Not to exceed 70°C for air and water-based fluids

Hose Tails: J Series

See the full approvals sheet here

Part No.

Size (in)

ID (mm)

OD (mm)

Working PSI

Min. Burst Pressure (PSI)

Min. Bend Radius (mm)

Reel Length (m)

Weight (kg/m)

100R8-02

1/8

4.0

8.0

6000

24000

25

100

0.045

100R8-03

3/16

5.0

8.9

5000

20000

30

100

0.05

100R8-04

1/4

6.5

11.5

5000

20000

50

100

0.085

100R8-06

3/8

9.7

15.5

4000

16000

60

100

0.135

100R8-08

1/2

13.0

19.9

3500

14000

80

100

0.20

100R8-12

3/4

19.5

27.1

2300

9200

150

100

0.32

100R8-16

1

25.9

34.2

2000

8000

200

100

0.44



Code Product Name Unit Stock Level
100R8-02
TAIPAN THERMOPLASTIC HOSE 1/8 6000PSI
Stock Code:
100R8-02
Stock Level:
Medium
Sales UOM:
M
M
Medium
100R8-03
TAIPAN THERMOPLASTIC HOSE 3/16 5000PSI
Stock Code:
100R8-03
Stock Level:
Medium
Sales UOM:
M
M
Medium
100R8-04
TAIPAN THERMOPLASTIC HOSE 1/4 5000PSI
Stock Code:
100R8-04
Stock Level:
Medium
Sales UOM:
M
M
Medium
100R8-06
TAIPAN THERMOPLASTIC HOSE 3/8 4000PSI
Stock Code:
100R8-06
Stock Level:
High
Sales UOM:
M
M
High
100R8-08
TAIPAN THERMOPLASTIC HOSE 1/2 3500PSI
Stock Code:
100R8-08
Stock Level:
Medium
Sales UOM:
M
M
Medium
100R8-12
TAIPAN THERMOPLASTIC HOSE 3/4 2300PSI
Stock Code:
100R8-12
Stock Level:
Medium
Sales UOM:
M
M
Medium
100R8-16
TAIPAN THERMOPLASTIC HOSE 1 2000PSI
Stock Code:
100R8-16
Stock Level:
Medium
Sales UOM:
M
M
Medium
