SAE100R15 6000PSI Very High Pressure Hose

VERY HIGH PRESSURE MULTISPIRAL HOSE

This spiral, non-skive hydraulic hose is designed for extremely high-pressure applications. Its synthetic rubber cover enhances abrasion resistance and meets or exceeds SAE J517 100R15 standards.

Tested over 1,000,000 impulse cycles at 133% of working pressure from -06 to -12, and 120% of working pressure from -16 to -32.

Technical Details



APPLICATION

Extremely high-pressure applications that require a higher degree of flexibility compared to conventional spiral hose. Suitable for the passage of mineral and vegetable oils, water-based solutions, water, air and inert gases.

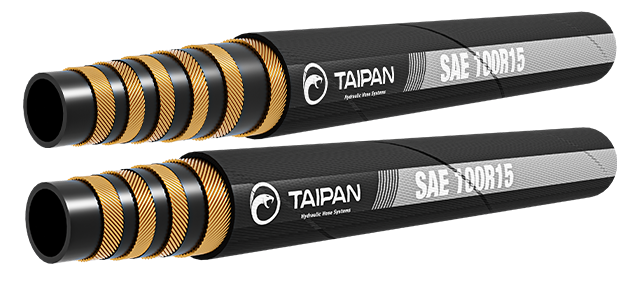

CONSTRUCTION

Inner Tube: Synthetic rubber

Reinforcement: Four* or six** plies of spirally-wrapped, high-tensile wire separated by synthetic rubber layers

Outer Cover: Oil, weather, and abrasion-resistant synthetic rubber, black, MSHA compliant

*Four plies: -06 to -16 | **Six plies: -20 to -32



SPECIFICATIONS

Standards: Meets or exceeds SAE J517 100R15

Approvals: 3/8” to 1 1/2” - DNV, MSHA, MED, ABS | 2” - MSHA

Temperature Range: -40°C - 121°C (intermittent to 125°C)

Hose Tails: L series (-06 and -08), N series (-10 to -32)

See the full approvals sheet here





Part No.

Size (in)

ID (mm)

OD (mm)

Working PSI

Min. Burst Pressure (PSI)

Min. Bend Radius (mm)

Reel Length (m)

Weight (kg/m)

100R15-06

3/8

9.5

20.0

6100

24400

65

60

0.65

100R15-08

1/2

12.7

23.0

6100

24400

90

60

0.85

100R15-10

5/8

15.9

26.6

6100

24400

100

60

1.00

100R15-12

3/4

19.0

30.6

6100

24400

120

60

1.50

100R15-16

1

25.4

37.6

6100

24400

150

60

2.00

100R15-20

1 1/4

31.8

49.3

6100

24400

300

60

3.55

100R15-24

1 1/2

38.1

57.0

6100

24400

350

60

4.65

100R15-32

2

51.0

70.5

6100

24400

650

60

6.50
