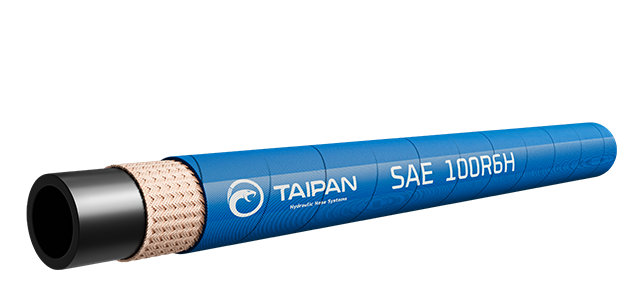

SAE100R6 High Temperature Hose

HIGH-TEMPERATURE TEXTILE BRAIDED HOSE

This textile-braided hydraulic hose is designed for high-temperature, low-pressure applications. Its cover enhances abrasion resistance and meets or exceeds SAE J517 100R6 standards.



Technical Details



APPLICATION

High-temperature, low-pressure hydraulic applications. Suitable for the passage of mineral and vegetable oils, water-based solutions, water, air and inert gases.

Air Applications: For air and inert gas applications, the cover should be pinpricked.



CONSTRUCTION

Inner Tube: Synthetic rubber

Reinforcement: One textile braid

Outer Cover: Oil, weather, and abrasion-resistant synthetic rubber, blue, MSHA compliant



SPECIFICATIONS

Standards: Meets or exceeds SAE J517 100R6

Approvals: MSHA

Temperature Range: -40°C - 150°C. For air, no higher than 121°C

Hose Tails: H series, J series

See the full approvals sheet here

Part No.

Size (in)

ID (mm)

OD (mm)

Working PSI

Min. Burst Pressure (PSI)

Min. Bend Radius (mm)

Reel Length (m)

Weight (kg/m)

100R6H-04

1/4

6.4

12.6

400

1600

65

100

0.08

100R6H-05

5/16

7.9

14.2

400

1600

75

100

0.09

100R6H-06

3/8

9.5

15.8

400

1600

75

100

0.10

100R6H-08

1/2

12.7

19.8

400

1600

100

100

0.15

100R6H-10

5/8

15.9

23.1

350

1400

125

50

0.17

100R6H-12

3/4

19.0

26.5

300

1200

150

50

0.21



Code Product Name Unit Stock Level
100R6H-04
TAIPAN BLUE HIGH TEMP TEXTILE BRAID HOSE 1/4 400PSI
Stock Code:
100R6H-04
Stock Level:
Medium
Sales UOM:
M
M
Medium
100R6H-05
TAIPAN BLUE HIGH TEMP TEXTILE BRAID HOSE 5/16 400PSI
Stock Code:
100R6H-05
Stock Level:
Medium
Sales UOM:
M
M
Medium
100R6H-06
TAIPAN BLUE HIGH TEMP TEXTILE BRAID HOSE 3/8 400PSI
Stock Code:
100R6H-06
Stock Level:
Medium
Sales UOM:
M
M
Medium
100R6H-08
TAIPAN BLUE HIGH TEMP TEXTILE BRAID HOSE 1/2 400PSI
Stock Code:
100R6H-08
Stock Level:
Medium
Sales UOM:
M
M
Medium
100R6H-10
TAIPAN BLUE HIGH TEMP TEXTILE BRAID HOSE 5/8 350PSI
Stock Code:
100R6H-10
Stock Level:
Medium
Sales UOM:
M
M
Medium
100R6H-12
TAIPAN BLUE HIGH TEMP TEXTILE BRAID HOSE 3/4 300PSI
Stock Code:
100R6H-12
Stock Level:
Medium
Sales UOM:
M
M
Medium
