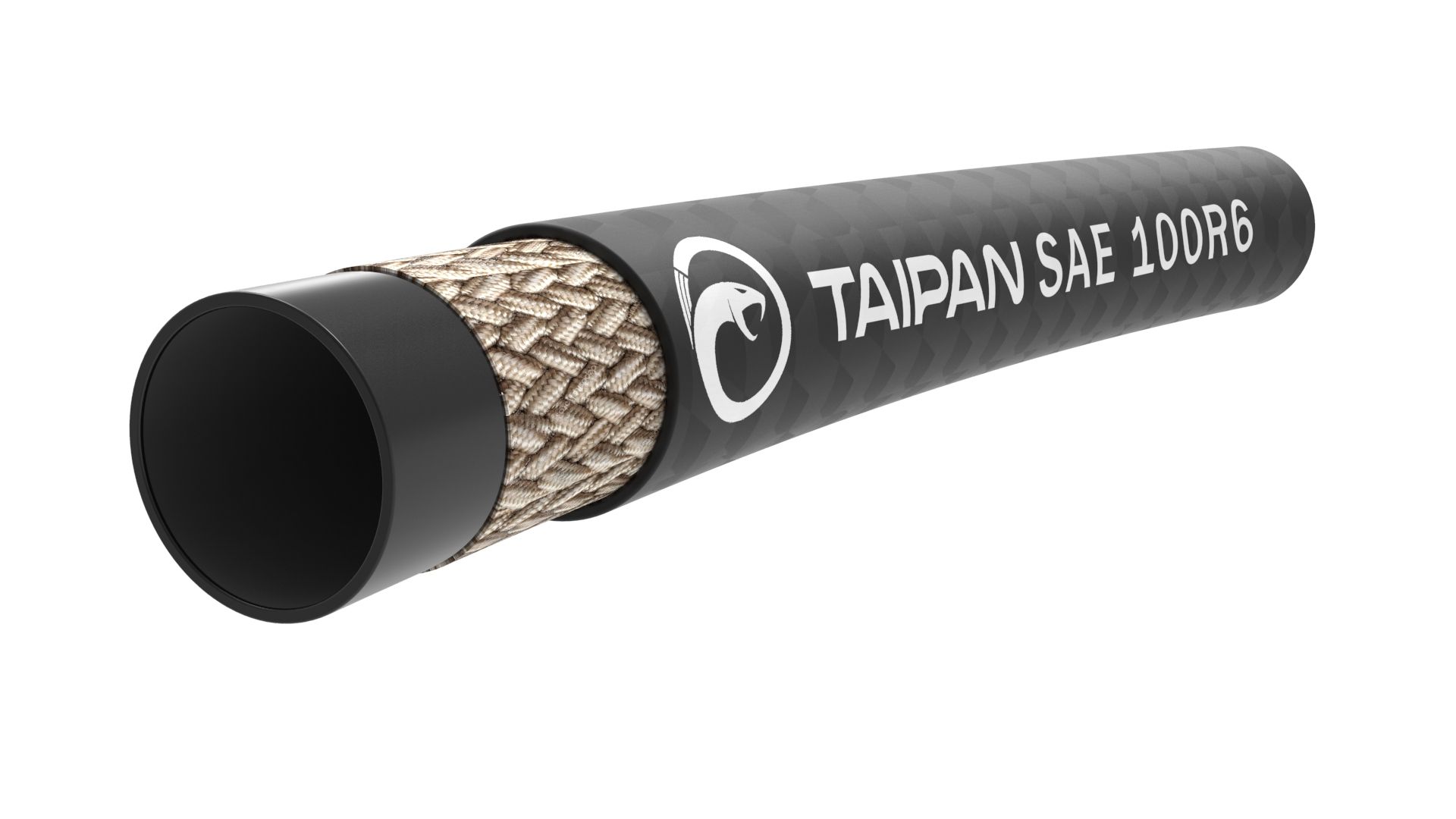

SAE100R6 Smooth Cover Hose

PREMIUM SMOOTH COVER TEXTILE BRAIDED HOSE

This textile-braided hydraulic hose is designed for medium-pressure applications. Its smooth cover enhances abrasion resistance and meets or exceeds SAE J517 100R6 standards.



Technical Details



APPLICATION

Medium-pressure service with petroleum-based hydraulic fluids, water-glycol and water-oil hydraulic fluids.

Air Applications: For air and inert gas applications, the cover should be pinpricked.



CONSTRUCTION

Inner Tube: Synthetic rubber (NBR I)

Reinforcement: One textile braid

Outer Cover: Oil, weather, and abrasion-resistant synthetic rubber, black, MSHA compliant



SPECIFICATIONS

Standards: Meets or exceeds SAE J517 100R6

Approvals: MSHA

Temperature Range: -40°C - 100°C

Hose Tails: H series, J series

See the full approvals sheet here

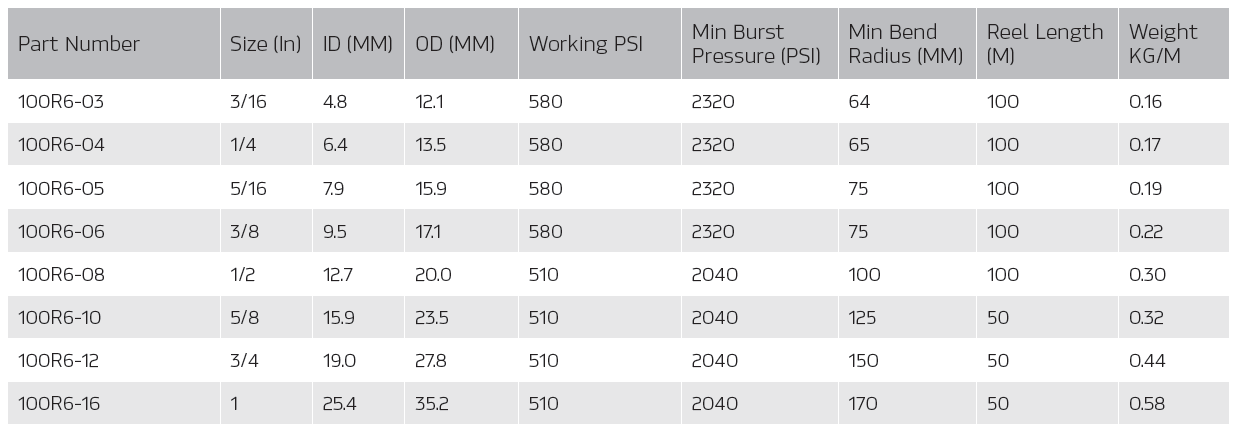

Part No.

Size (in)

ID (mm)

OD (mm)

Working PSI

Min. Burst Pressure (PSI)

Min. Bend Radius (mm)

Reel Length (m)

Weight (kg/m)

100R6-03

3/16

4.8

12.1

580

2320

50

100

0.16

100R6-04

1/4

6.4

13.2

580

2320

65

100

0.17

100R6-05

5/16

7.9

15.0

580

2320

75

100

0.19

100R6-06

3/8

9.5

16.6

580

2320

75

100

0.22

100R6-08

1/2

12.7

20.0

510

2040

100

100

0.30

100R6-10

5/8

15.9

23.9

510

2040

125

50

0.32

100R6-12

3/4

19.0

28.0

510

2040

150

50

0.44

100R6-16

1

25.4

35.5

510

2040

170

50

0.58
